Stainless steel printing screen is a kind of woven wire cloth for printing industry. This kind of screen has uniform opening and flat surface without joint knots. It also has the characteristics of acid resistance, alkali resistance and high lasting strength. The fine wire diameter allows good ink performance. Print-screening wire mesh is widely used in the plate making of electronics, textiles, ceramics, glass, and filtration of aviation, airspace and petrochemical industries. It will not be affected under ultra-violet radiation. The shortcoming of stainless steel printing screen is its lack of flexibility and more expensive price.
Materials: SUS304L, SUS316L, SUS304N, SUS304HP and so on
Weaving method : plain weave
Benefits:
* High precision of the mesh openings
* Uniform weave (no mesh striping)
* Exceptionally high yield point
* Uniform wire diameter and aperture
* Not lose elasticity at extreme tension
* Good heat-melting resistance and suitable for heat-melting ink
* Much higher tension than common polyester mesh and smooth tension
Applications:
Stainless steel printing screens are widely used in the plate making of electronics, textiles, ceramics, glass and other industries and filtration of aviation, airspace and petrochemical industries.

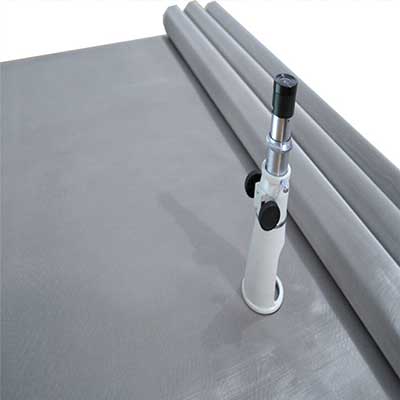

Stainless Steel Printing Screen | Stainless Steel Printing Screen |
Stainless Steel Printing Screen | Stainless Steel Printing Screen |
Specification of Stainless Steel Printing Screen:
| mesh | Wire dia (μm) | thickness (μm) | material | Materials | |
| 40*40*160 | 40 | 160 | 300-320 | 316L | 304N |
| 50*50*140 | 50 | 140 | 265-280 | 316L | 304N |
| 60*60*120 | 60 | 120 | 230-245 | 316L | 304N |
| 70*70*70 | 70 | 70 | 135-143 | 316L | 304N |
| 80*80*120 | 80 | 120 | 235-245 | 316L | 304N |
| 80*80*90 | 80 | 90 | 175-180 | 316L | 304N |
| 80*80*50 | 80 | 50 | 95-100 | 316L | 304N |
| 100*100*100 | 100 | 100 | 195-205 | 316L | 304N |
| 120*120*80 | 120 | 80 | 155-165 | 316L | 304N |
| 150*150*60 | 150 | 60 | 115-124 | 316L | 304N |
| 165*165*35 | 165 | 35 | 70-75 | 316L | 304N |
| 165*165*45 | 165 | 45 | 88-93 | 316L | 304N |
| 165*165*50 | 165 | 50 | 97-105 | 316L | 304N |
| 180*180*45 | 180 | 45 | 88-93 | 316L | 304N |
| 180*180*50 | 180 | 50 | 96-104 | 316L | 304N |
| 200*200*40 | 200 | 40 | 78-82 | 316L | 304N |
| 200*200*50 | 200 | 50 | 98-103 | 316L | 304N |
| 230*230*35 | 230 | 35 | 58-61 | 316L | 304N |
| 250*250*40 | 250 | 40 | 69-74 | 316L | 304N |
| 250*250*30 | 250 | 30 | 58-62 | 316L | 304N |
| 250*250*35 | 250 | 35 | 64-68 | 316L | 304N |
| 270*270*35 | 270 | 35 | 71-75 | 316L | 304N |
| 300*300*30 | 300 | 30 | 65-69 | 316L | 304N |
| 325*325*30 | 325 | 30 | 62-66 | 316L | 304N |
| 325*325*28 | 325 | 28 | 60-64 | 316L | 304N |
| 325*325*23 | 325 | 23 | 49-53 | 316L | 304N |
| 350*350*25 | 350 | 25 | 46-49 | 316L | 304N |
| 360*360*16 | 360 | 16 | 31-35 | 316L | 304N |
| 400*400*23 | 400 | 23 | 50-54 | 316L | 304N |
| 400*400*18 | 400 | 18 | 36-40 | 316L | 304N |
| 500*500*18 | 500 | 18 | 36-40 | 316L | 304N |
| 500*500*15 | 500 | 15 | 33-37 | 316L | 304N |
Special Stainless Steel Printing Screen specifications can be produced by the customer’s requirements.
