Stainless steel perforated metal is one of the most versatile products on the market today. A fully functioning product by it’s shape of perforated opening, gauge and size–it can be tough in gauge and work hard at screening and filtering a variety of solids in the marketplace. On the other hand, it’s same features can be lightweight in gauge, have small or large optically appealing openings and be very suitable for many architectural and display uses. We have the flexibility to manufacture stainless steel perforated metal in thicknesses from foil to thick plate.
Usually stainless steel perforated metal is made of high quality stainless steel sheet after being perforated on the digital control perforated machines. It’s widely used in the following applications:
* For wall or ceiling panel
* For architectural finishes
* For sieving grain
* Noise elimination
* Offer a large ventilation opening with effective protection for the machine parts inside
* Often used for acoustics and safety for the IT industry, as well as machinery construction for protection and ventilation panels
We have many different patterns available and ready for production. However, if we do not have tooling for the exact pattern you require, our modern and well equipped tooling department is able to produce cost effective tooling, enabling us to supply perforated products exactly to your request.
Perforating process:
* Perforating: we use the CNC machine to produce state-to-art product.The day is over 3000㎡.We can perforate the material thickness from 0.1mm to 25mm.
* Slitting: slitting to your finished width is done in-line frome a coil
* Shearing: our adept worker can shear the margins when the tolerance is great than our in-line process.
* Roller Leveling: we can bring the perforated material thichness arrange from 0.8mm-12mm back to the original flatness with the roller press.
* Cleanliness: the perforating process requires the use of lubricants, and a degreasing step can be applied to clean oil free from the material surfaces.
* Fabricating: besides custom perforating, we also offer a full range of in-house and out-sourced secondary fabricating and finishing operations, which include: leveling, shearing, circle shearing, bar coding labeling, custom packaging, degreasing, deburring, forming, blanking, annealing painting powder coating, anodizing, welding, polishing, joining, bending, rolling.
* Surface finish: perforating, leveling and shearing normally leave slight surface imperfections behind that are considered acceptable in the industry. If required, special precautions such as vinyl coated material and paper interleaving can be taken, at additional cost.

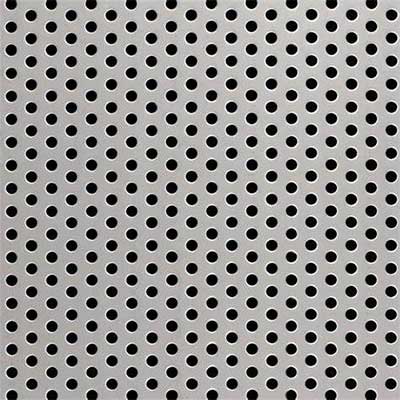

Stainless Steel Perforated Metal | Stainless Steel Perforated Metal |
Specifications of Stainless Steel Perforated Metal
| GAUGE | HOLES | CENTERS | OPEN AREA % |
| 30 | .020″ | .045″ | 20% |
| 26 | 1/32″ | 1/16″ | 22% |
| 26 | .033″ | .055″ STRAIGHT | 29% |
| 24 | 3/64″ | 3/32″ | 23% |
| 26 | .050″ | .066″ STRAIGHT | 52% |
| 26 | 050″ | 5/64″ | 37% |
| 22 | 1/16″ | 3/32″ | 40% |
| 22,26 | 1/16″ | 7/64″ | 30% |
| 20,18 | 1/16″ | 1/8″ | 23% |
| 22,20 | 5/64 | 1/8″ | 35% |
| 20,18,16 | 3/32 | 5/32″ | 33% |
| 22 | .117 | 5/32″ | 51% |
| 26-11 | 1/8 | 3/16″ | 40% |
| 20-16 | 5/32″ | 3/16″ | 63% |
| 24-14 | 3/16″ | 1/4″ | 51% |
| 18,11 | 3/16″ | 5/16″ | 33% |
| 22-16 | 1/4″ | 5/16″ | 58% |
| 20-14,11 | 1/4″ | 3/8″ | 40% |
| 10 | 3/8″ | 1/2″ | 51% |
| 18,16,11 | 3/8″ | 9/16″ | 40% |
| 20,16,14,11 | 1/2″ | 11/16″ | 48% |
| 11 | 3/4″ | 1″ | 51% |
Special Stainless Steel Perforated Metal specifications can be produced by the customer’s requirements.
