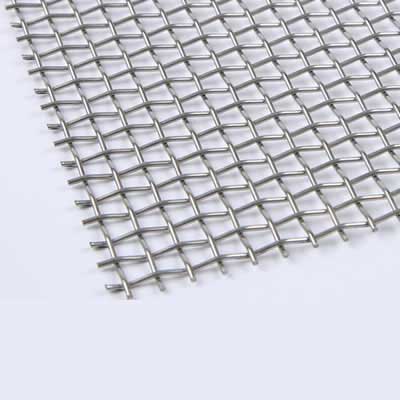

Crimped wire mesh is usually used as barbecue grill wire netting and made of carbon iron wire, galvanized steel wire or stainless steel wire. Stainless steel crimped mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials. It’s a kind of universal wire products with square or rectangular openings and woven after wire being crimped.
Materials: carbon iron wire, galvanized steel wire, stainless steel wire and other non-ferrous metals
Weaving patterns:
* Flat top
* Double crimped
* Weaving after crimping
* Rectangular slot and long slot
Features:
* Ease of fabrication
* Excellent corrosion & acid resistance
* Beautiful appearance and long service life
* Stable structure and good strength
* Thermal and heat resistance
Usages:
Stainless steel cripmed wire mesh could be used in many fields, such as in mine, coal factory, construction and other industries. Some of them could also be used for roasting flour food and meat.
Stainless Steel Crimped Wire Mesh | Stainless Steel Crimped Wire Mesh |
Stainless Steel Crimped Wire Mesh | Stainless Steel Crimped Wire Mesh |
Specifications of Stainless Steel Crimped Wire Mesh
| Wire Gauge SWG | Wire Diameter mm | Mesh/Inch | Aperture mm | Weight kg/m2 |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
Special Stainless Steel Crimped Wire Mesh specifications can be produced by the customer’s requirements.
