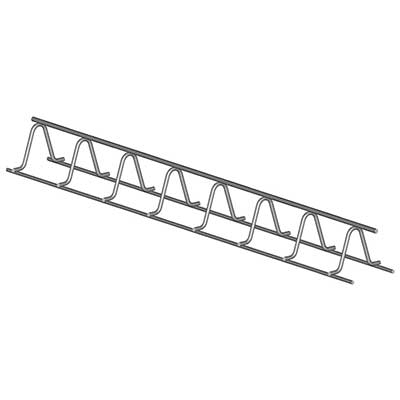

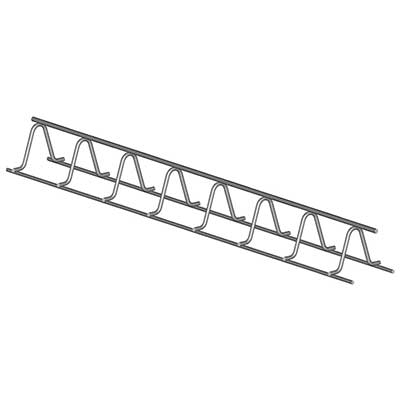

Beam Bolster

Beam bolster is welded with new technology, mainly used for big construction industry, as joint linking single or multi-layer reinforced steel bars. With great strength, flexibility, anti-static and environmental protection,it can greatly improve the quality of the project, save cost and time. By using of beam bolster, the construction time can be saved and the speed can be accelerated to reduce the construction cycle.

Materials: good quality low carbon steel

Cover height: 1″ to 5″, in 1/4″ increments

Features: legs placed on 2-1/2″ centers to allow beam bolster to be field cut to fit soffit width while maintaining adequate support.

Types of Beam Bolster

1. Beam Bolster with Plate Beam bolster with plate is widely used to support lower beam steel on loosely compacted soil, rock base, sand base or carton form surface. Available in plain finish in 5 ft. lengths. Cover height: 1″ to 2″ in standard (7 ga.) or heavy (4 ga.) wire 2-1/4″ to 5″, in ¼” increments (4 ga.) wire Features: Single plate provides bearing surface to keep Beam Bolster at elevation. Top carrier wire allows for reinforcing steel to be spaced closely together. Support legs spaced on 2-1/2″ centers to provide adequate support and allow for cutting to length in the field.

2. Beam Bolster Upper Beam bolster upper is used to support successive layers of steel, one above the other by being placed on and perpendicular to lower steel. Available in plain or epoxy-coated finish. Available in 5 ft length, other lengths available on special order basis. Cover height: 1″ to 5″ in 1/4″ increments Features: Lower runner wires provide bearing on lower mat steel or carton form surface. Support legs on 2-1/2″ centers allow for cutting to length in the field and reinforcing steel to be spaced closely together.

Specification of Beam Bolster

Special Beam Bolster specifications can be produced by the customer’s requirements.
